Hookshot bridge

The Hookshot bridge installed by us is powered by hookshot.

• Full documentation
• Source code
• Support

This page shows you how to set up Hookshot using Cinny client app (available as an add-on component).

Overview¶

Hookshot supports integration with popular software project management services such as GitHub, GitLab, JIRA, and Figma, as well as generic webhooks.

Below we describe the basic Hookshot usage for:

• creating webhooks to receive data in Matrix rooms
• subscribing to RSS/Atom feeds to receive updates in Matrix rooms

Usage¶

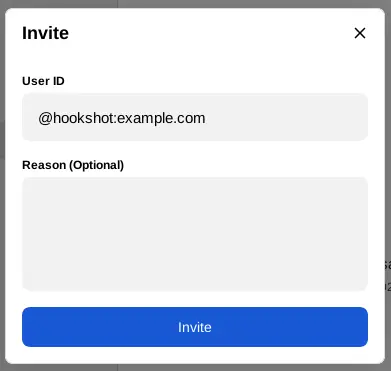

To use the bot, start a chat with @hookshot:your-server.com. You can also add the bot to any existing Matrix room by inviting it to the room (/invite @hookshot:your-server.com).

Make sure to replace your-server.com with your actual “base domain”. Setting your-server.com or example.com does not work on your server!

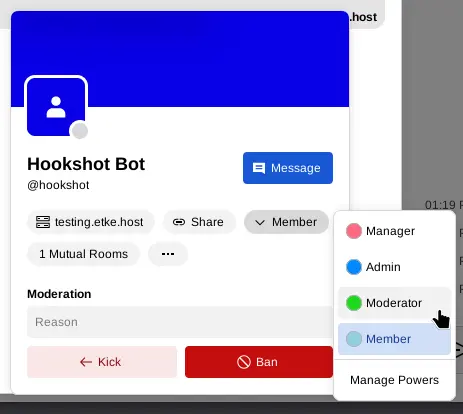

When it joins, make sure the bot is able to send state events (usually the Moderator power level in clients). On Cinny you can change the power level on the room configuration dialog.

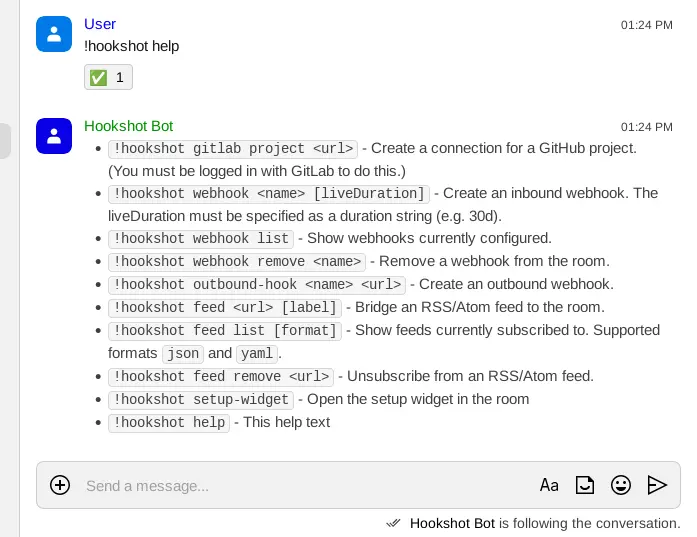

You can send !hookshot help to the bot in the room to check instructions.

Webhooks¶

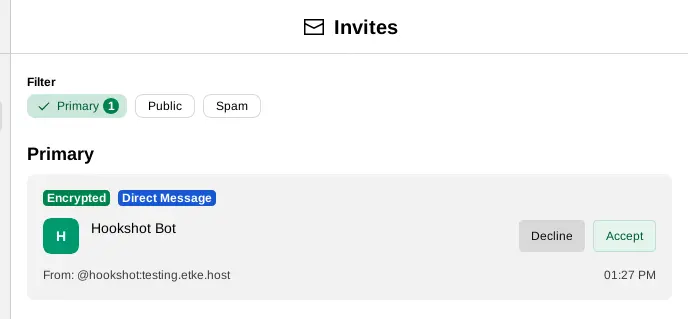

To register a webhook, send a !hookshot webhook WEBHOOK_NAME_HERE room message. You will then receive a link for the webhook in a private message. If there is not a room for one, you will receive the invite from the bot.

You can specify the URL to external systems which support webhooks.

To verify that the webhook link works or to make use of it from your own systems, send a new message via the webhook link. You will need to send a JSON body payload, which looks like this:

{
    "text": "Hello world!",
    "username": "MyBot"
}

You can confirm the webhook was properly configured by using curl as below:

curl --header "Content-Type: application/json" \
--data '{
"text": "Hello world!",
"username": "MyBot"
}' \
THE_WEBHOOK_LINK_YOU_RECEIVED_EARLIER

You should receive the message in the room from the user MyBot invited by the Hookshot’s bot:

For more information about webhook payloads and handling, see the Hookshot documentation about Webhooks.

Feeds (RSS, Atom)¶

To register a new URL feed, send a !hookshot feed URL_HERE message after replacing URL_HERE with the URL which points to an RSS or Atom feed.

To list feeds that the bot currently subscribes to, send !hookshot feed list in the room.

To remove feeds from the list, send !hookshot feed remove URL_HERE in the room.

For more information about feed management, see the Hookshot documentation about feeds.
